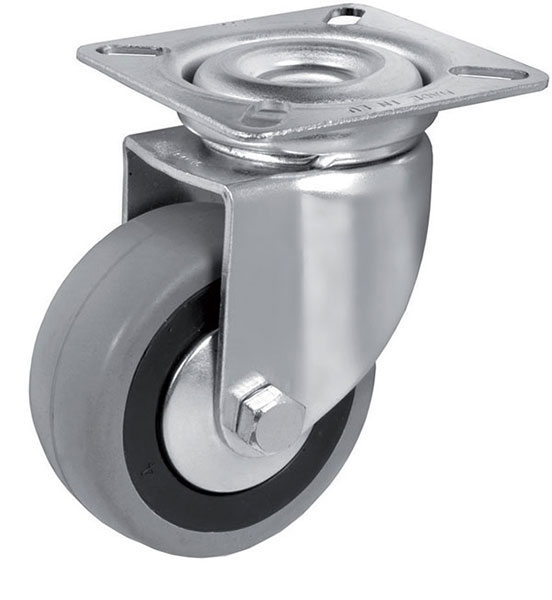

P30 705 |
Codice | € | ⌀ mm | Larghezza mm | Altezza totale mm | Dimensioni piastra mm | Interasse fori piastra mm | ⌀ fori piastra mm | Disassamento mm | Portata daN | Peso Kg |
|
---|---|---|---|---|---|---|---|---|---|---|---|
P30705 0080 | -,-- | 40 | 18 | 59 | 42x42 | 30x30 | 5 | 24 | 30 | 0,12 | |
P30705 0100 | -,-- | 50 | 18 | 66 | 55x55 | 40x40 | 6 | 24 | 35 | 0,20 | |
P30705 0200 | -,-- | 60 | 24 | 83 | 60x60 | 45x45 | 6 | 21 | 50 | 0,28 | |
P30705 0400 | -,-- | 80 | 24 | 104 | 60x60 | 45x45 | 6 | 30 | 55 | 0,43 |
I prezzi indicati non sono più validi.
> Consulta il catalogo
