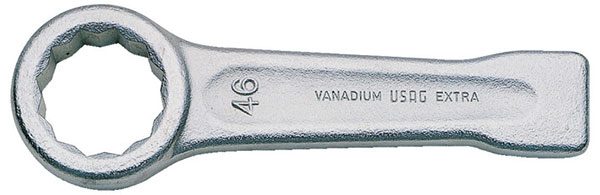

N06 305 |

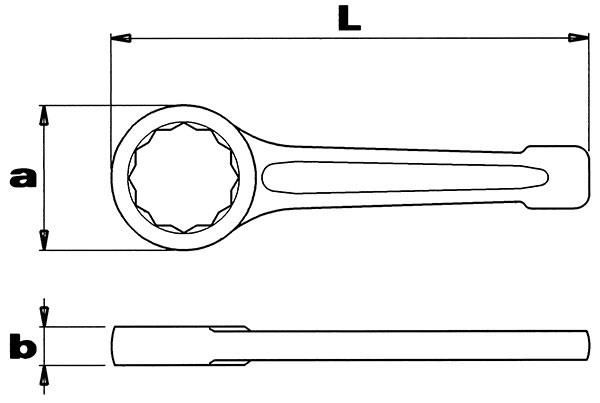

| Codice | € | Misura mm | a mm | b mm | L mm |
|
|---|---|---|---|---|---|---|
| N06305 0024 | -,-- | 24 | 43 | 15 | 165 | |
| N06305 0027 | -,-- | 27 | 46 | 16 | 180 | |
| N06305 0030 | -,-- | 30 | 52 | 17 | 190 | |
| N06305 0032 | -,-- | 32 | 52 | 17 | 190 | |
| N06305 0036 | -,-- | 36 | 58 | 18 | 205 | |
| N06305 0041 | -,-- | 41 | 66 | 20 | 230 | |
| N06305 0046 | -,-- | 46 | 74 | 22 | 240 | |
| N06305 0050 | -,-- | 50 | 80 | 24 | 255 | |
| N06305 0055 | -,-- | 55 | 86 | 25 | 270 | |
| N06305 0060 | -,-- | 60 | 93 | 26 | 280 | |
| N06305 0065 | -,-- | 65 | 102 | 30 | 300 | |
| N06305 0070 | -,-- | 70 | 110 | 33 | 330 | |
| N06305 0075 | -,-- | 75 | 110 | 33 | 330 | |
| N06305 0080 | -,-- | 80 | 126 | 36 | 360 | |
| N06305 0085 | -,-- | 85 | 126 | 36 | 360 | |
| N06305 0090 | -,-- | 90 | 142 | 40 | 390 | |
| N06305 0095 | -,-- | 95 | 142 | 40 | 390 | |
| N06305 0100 | -,-- | 100 | 155 | 45 | 420 | |
| N06305 0105 | -,-- | 105 | 155 | 45 | 420 | |
| N06305 0110 | -,-- | 110 | 170 | 48 | 450 | |
| N06305 0115 | -,-- | 115 | 170 | 48 | 450 | |
| N06305 0120 | -,-- | 120 | 182 | 54 | 480 | |
| N06305 0125 | -,-- | 125 | 182 | 54 | 480 | |
| N06305 0130 | -,-- | 130 | 202 | 58 | 520 | |
| N06305 0135 | -,-- | 135 | 202 | 58 | 520 | |
| N06305 0140 | -,-- | 140 | 210 | 58 | 520 | |
| N06305 0145 | -,-- | 145 | 228 | 64 | 580 |
= Spedizione da magazzino CDU
= Spedizione da magazzino esterno
