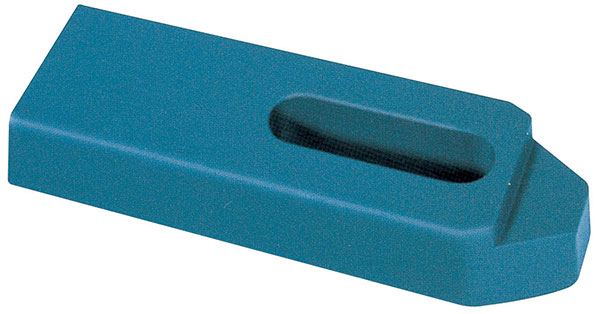

C60 045 |

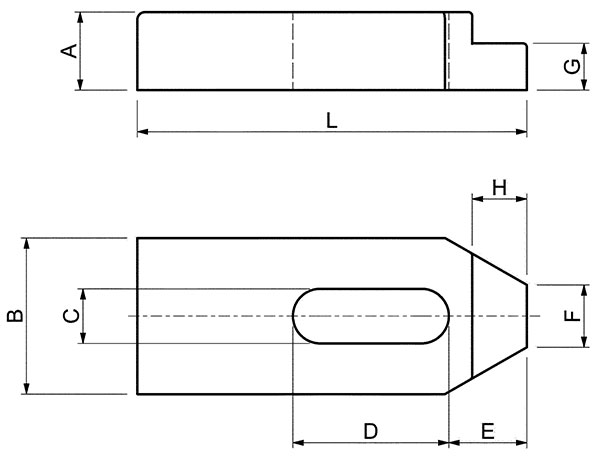

| Codice | € | G mm | A mm | B mm | L mm | C mm | D mm | E mm | F mm | H mm | Viti M |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C60045 0005 | -,-- | 6 | 10 | 20 | 50 | 7 | 20 | 10 | 8 | 7 | 6 | |
| C60045 0010 | -,-- | 7 | 12 | 25 | 60 | 9 | 22 | 13 | 10 | 10 | 8 | |
| C60045 0015 | -,-- | 9 | 15 | 30 | 80 | 11 | 30 | 15 | 12 | 9 | 10 | |
| C60045 0020 | -,-- | 12 | 20 | 40 | 100 | 14 | 40 | 21 | 14 | 12 | 12-14 | |
| C60045 0025 | -,-- | 12 | 20 | 40 | 125 | 14 | 50 | 21 | 14 | 12 | 12-14 | |
| C60045 0030 | -,-- | 12 | 20 | 40 | 160 | 14 | 65 | 26 | 14 | 12 | 12-14 | |
| C60045 0035 | -,-- | 15 | 25 | 50 | 125 | 18 | 45 | 26 | 18 | 15 | 16-18 | |
| C60045 0040 | -,-- | 15 | 25 | 50 | 160 | 18 | 65 | 26 | 18 | 15 | 16-18 | |
| C60045 0045 | -,-- | 15 | 25 | 50 | 200 | 18 | 80 | 26 | 18 | 15 | 16-18 | |
| C60045 0050 | -,-- | 20 | 30 | 60 | 160 | 22 | 60 | 30 | 22 | 20 | 20-22 | |
| C60045 0055 | -,-- | 20 | 30 | 60 | 200 | 22 | 80 | 30 | 22 | 20 | 20-22 | |
| C60045 0060 | -,-- | 20 | 30 | 70 | 200 | 26 | 80 | 35 | 26 | 25 | 24 | |
| C60045 0065 | -,-- | 20 | 30 | 70 | 250 | 26 | 105 | 35 | 26 | 25 | 24 | |
| C60045 0070 | -,-- | 25 | 40 | 80 | 250 | 34 | 100 | 45 | 34 | 25 | 27-30 | |
| C60045 0075 | -,-- | 25 | 40 | 80 | 315 | 34 | 130 | 45 | 34 | 25 | 27-30 |
= Spedizione da magazzino CDU
= Spedizione da magazzino esterno
I prezzi indicati non sono più validi.
> Consulta il catalogo
